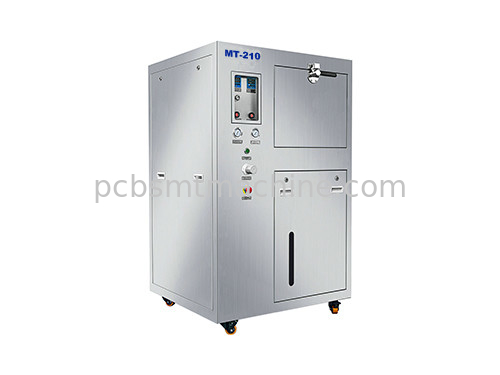

MT-210 cleaning machine specially used for cleaning solder paste misprinted PCB in the SMT process is designed using compressed air to clean and blow-dry the PCB and there no power supply required to operate this machine. The compressed air provides power and adopts circulating spray cleaning and dry functions. MT-210 cleaning machine is a single button operation and one push automatically completes the entire cleaning and drying process. This machine is designed for industrial use and the overall structure is made of 304 stainless steel material making this machine sturdy, durable, and resistant to acid and alkali solutions. Solvent and water-based cleaning fluid are both usable in the MT-210 cleaning machine.
Machine features:
1. The overall structure of 304 stainless steel, sturdy and durable, resistant to acid and alkali solutions, and designed to last for 10 years.
2. Compressed air is completely used as power, no electricity is needed, and there is no safety hazard caused by electric sparks.
3. Solvent and water-based cleaning fluid are both used in the machine.
4. One-button simple operation, cleaning, and drying can be completed at one time.
5. Push-pull cleaning basket design, quick access to cleaning items.
6. Equipped with automatic liquid filling and draining functions.
7. The cleaning solution is automatically circulated and filtered, with low consumption.
8. The inner lock safety door is designed to stop when the door is opened to ensure safety.
9. Up to 1um precision 3-layer filtration system, solvent recycling.
10. Components of world-renowned brands to ensure long-term stable use of the machine.
Machine specifications:
MT-210 specification
Basket size: L420 x W420 x H200 (mm)
Tank capacity: 50L
Cleaning time: 3~6min
Drying time: 3~6min
Air pressure requirement: 0.5~0.7Mpa
Air consumption: 400~600L/min
Cleaning method: 360°rotating jet cleaning + high-pressure air jet drying
Filtering system: 1mm/100um/1um three-stage filtration
Machine size: L1060 x W800 x H1600(mm)
Machine weight: 260KG
